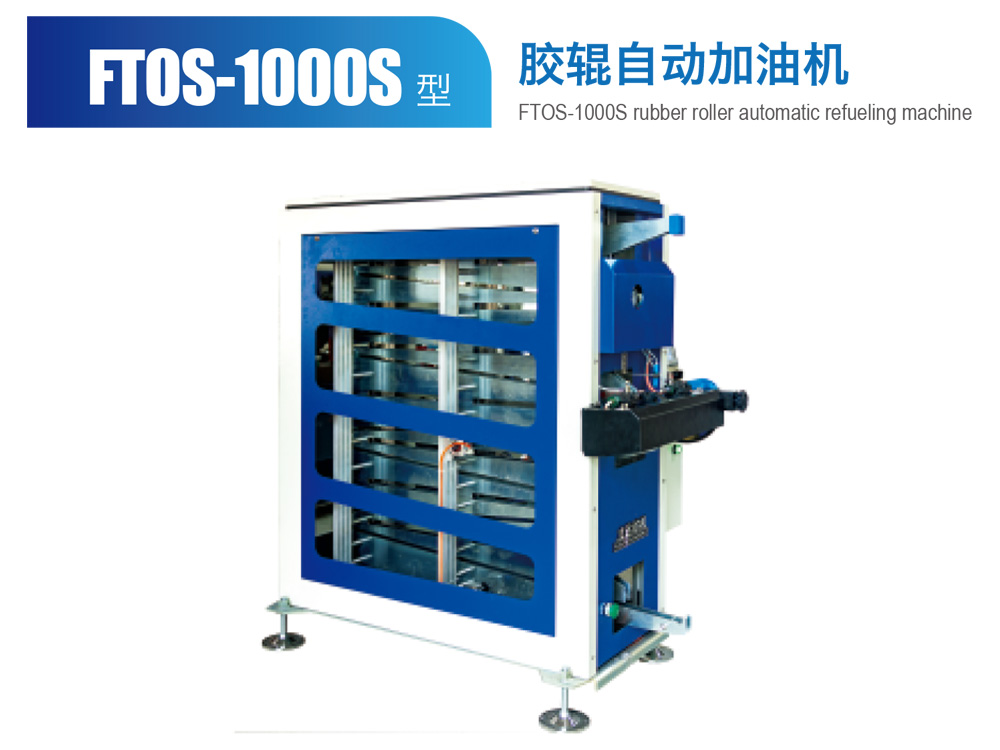

FTOS--1000S膠輥自動加油機

功能及特點 Function and characteristics

這是一臺全自動操作的雙頭注油，減少勞動強度，提高

工效，氣動柱塞泵供油確?？傆蛢淞砍浞?，精準的閥端控

制和分配對雙頭同步皮輥注油，配置的進出S滾道自動儲存

加工前后皮輥。

This is a fully automatic operation of double-head oiling,

reduce labor intensity, improve efficiency,

pneumatic piston pump oil supply to ensure

 that the total oil reserve is sufficient,

accurate valve end control and distribution of

double-head synchronous roller oiling, the

configuration of the entry and exit of

the S-raceway automatic storage before and after

processing of the roller.

技術參數及規格Technial Parameters

電源 power supply 380V+PE

整機功率 Total power  800W

一次注油量 Oil injection volume at one time  0-10ml

加工范圍 Processing range

內檔長度Inner gear length30-60mm

直徑： ф24-45mm

S道儲存數 Number of S-channels stored 220+220檔

壓縮空氣壓力 Compressed air pressure 0.6to0.7Mpa
