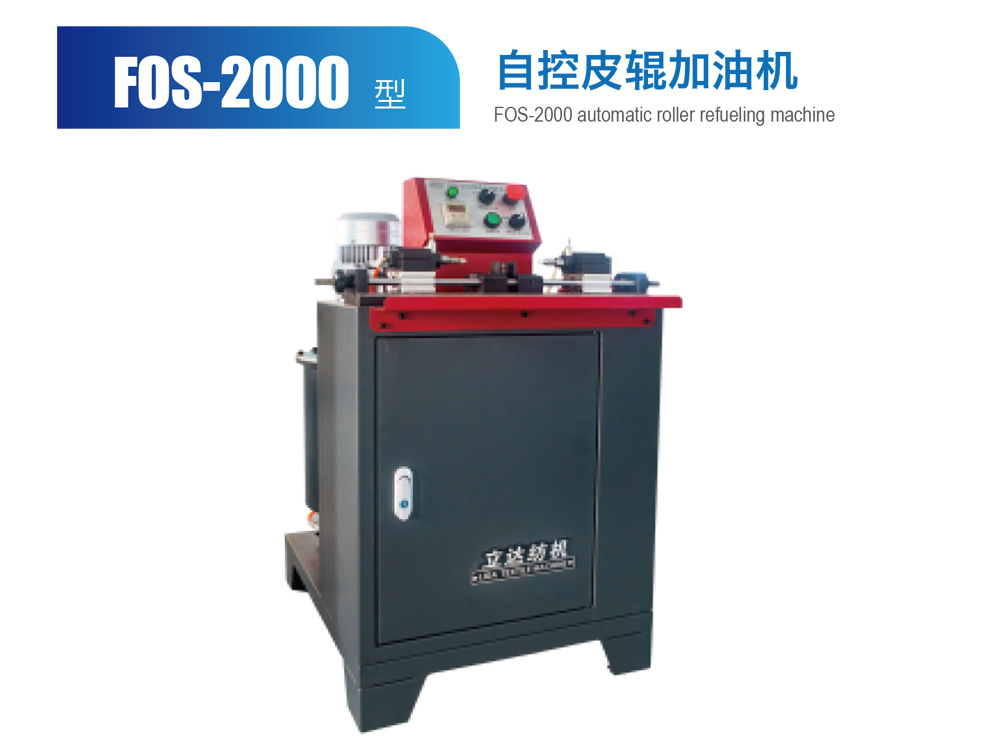

FOS--2000型自控皮輥加油機

功能及特點 Function and characteristics

操作簡便的雙頭注油，是為紡織廠提高工效，降

低勞動強度的設備保證，氣動柱塞泵供油確?？傆蛢?/p>

備量充分，精準的閥端控制和分配對雙頭同步皮輥注

油，配置的第三路油管為單頭補油保留應用。

Easy to operate double head oiling, is to improve the efficiency of the

textile factory, reduce the labor intensity of the equipment guarantee,

pneumatic plunger pump oil supply to ensure that the total oil reserve is

sufficient, accurate valve end control and distribution of double head

synchronous roller oiling, the configuration of the third pipeline for single

head oil retention application.

process processes for the user.

技術參數(shù)及規(guī)格 Technial Parameters

電源 power supply 380V+PE

整機功率 Total power  800W

一次注油量 Oil injection volume at one time  0-10ml

加工范圍 Processing range

內(nèi)檔長度Inner gear length30-60mm

直徑：ф24-45mm

壓縮空氣壓力 Compressed air pressure 0.6to0.7Mpa
